产品特点：
数控立式车床适用于加工大直径轴类及盘类零件的内外圆柱面、圆锥面、圆弧表面、端面、切槽、各种螺纹钻孔、较孔、镗孔、倒角等工序的切削加工。本机床适用范围广，效率高，精度稳定性好，零件尺寸同一性好，易于操作。能够满足单件或批量产品的高精度加工要求。
床身由可以吸收震动的优质铸铁制造，经过热处理和应力处理。可以有效提升机床加工精度和机床床身强度。
采用高频热处理的X / Z轴导轨，滑棒耐磨塑料，提高精度，降低摩擦系数。
Feature:

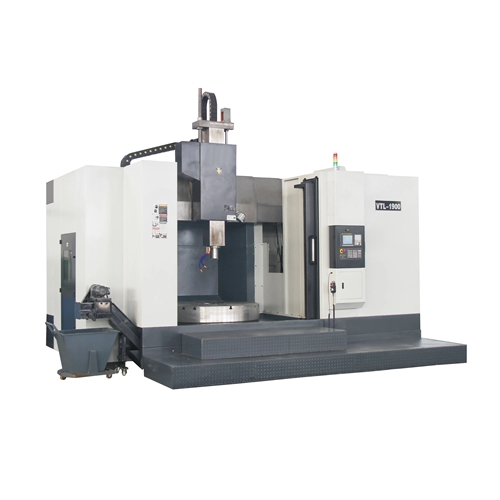

CNC Vertical Lathe is suitable for internal and external turning, internal and external tapering, circular arc, facing slotting, thread, drilling, reaming, boring, chamfering of big diameter axle parts and disc type parts. The machine has a widely use, high efficiency, good stability, easy to operate. It can achieve the high-precision processing of single or batch processing
Body made by high quality cast-iron can absorb vibrations, with heat treatment and stress processing. Ensure the machine has high rigidity and the reliability framework.
The X/Z axis guide way with high frequency heat treatment, slide stick wear-resisting plastic, improves the accuracy and reduces the frictional factor.
|
标准配置: 4方刀架; 排屑机; 气动系统和液压系统; 自动润滑系统 工作灯; 报警灯; 移动手脉
|
选择配置: BT50 主轴 BT50 16把斗笠刀库 |
|
Standard Accessories: 4 Station Toolpost; Chip Conveyor; Pneumatic and Lubrication system; Auto Coolant system Work Lamp; Alarm Lamp; MPG
|
选择配置: BT50 Spindle BT50 16T Tool magazine |
主要参数Main Specifications:
|
Specifications |
VTL1600 |
VTL1900 |
|
|
最大车削直径Max. Turning diameter |
1600mm |
1900mm |
|
|
最大回转直径Max. Swing diameter |
1900mm |
2000mm |
|
|
工作台直径Worktable diameter |
1400mm |
1600mm |
|
|
最大工件重量Max. Weight of work piece |
5T |
8T |
|
|
工作台转速范围Speed range of worktable |
7-200r/min |
7-200r/min |
|
|
刀架行程Travel of toolpost |
水平方向Horizontal |
1600mm |
1600mm |
|
垂直方向Vertical |
1000mm |
1000mm |
|
|
刀架容量Magazine capacity |
16pcs |
16pcs |
|
|
刀柄Tool holder |
BT50 |
BT50 |
|
|
最大刀具重量Max. Tool weight |
15kg |
15kg |
|
|
最大刀具长度Max. Tool length |
100mm |
100mm |
|
|
刀架进给量范围Range of toolpost feed |
1-200mm/min(stepless) |
1-200mm/min(stepless) |
|
|
刀架快速移动速度Rapid feed of toolpost |
水平方向Horizontal |
6000mm/min |
6000mm/min |
|
垂直方向Vertical |
4000mm/min |
4000mm/min |
|
|
主电机功率Power of main motor |
30-37kw |
30-37kw |
|
|
机床重量Weight |
16T |
20T |
|
|
外形尺寸Overall dimensions |
4900×2800×3400mm |
6000×4600×4300mm |
|
